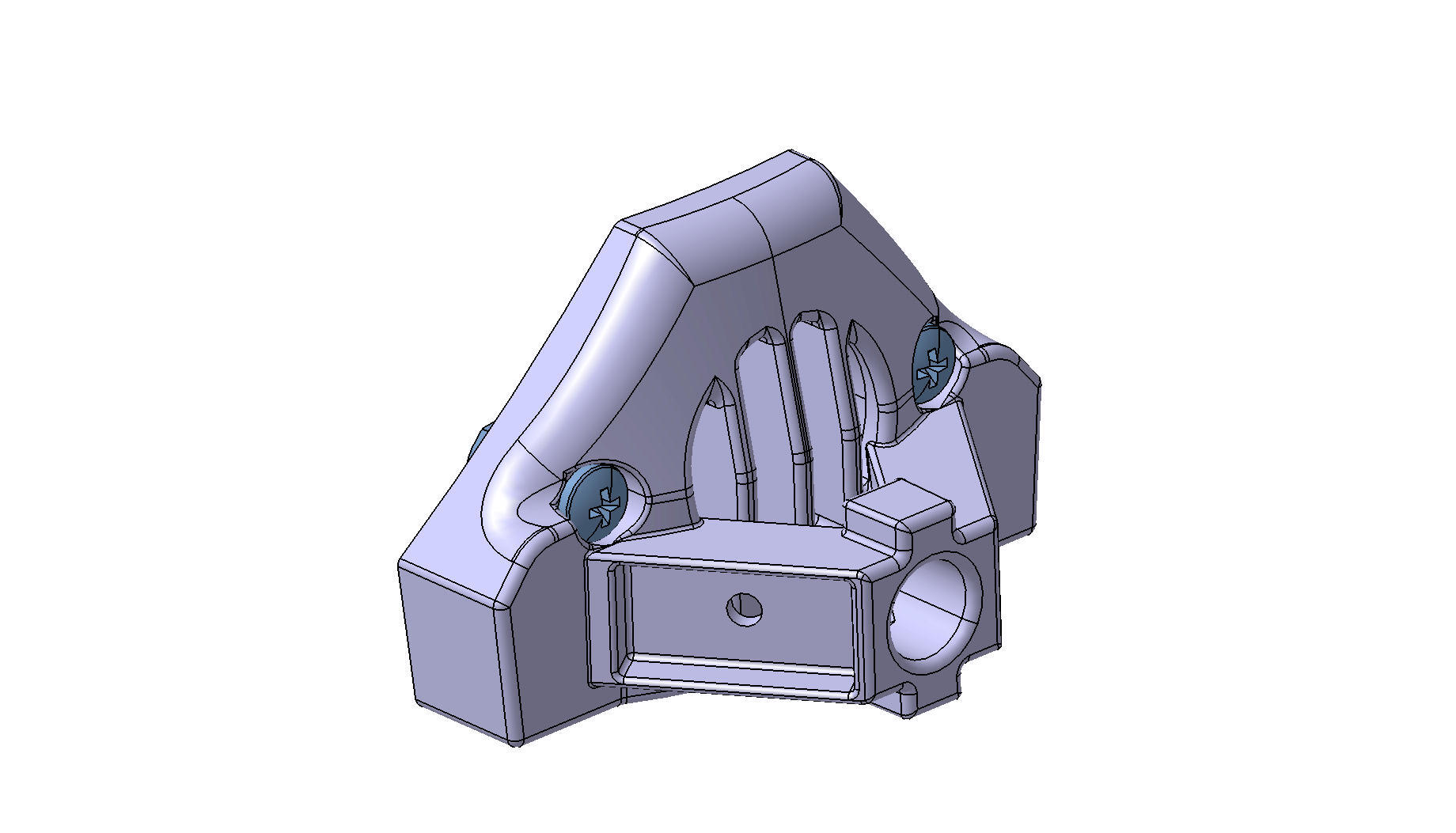

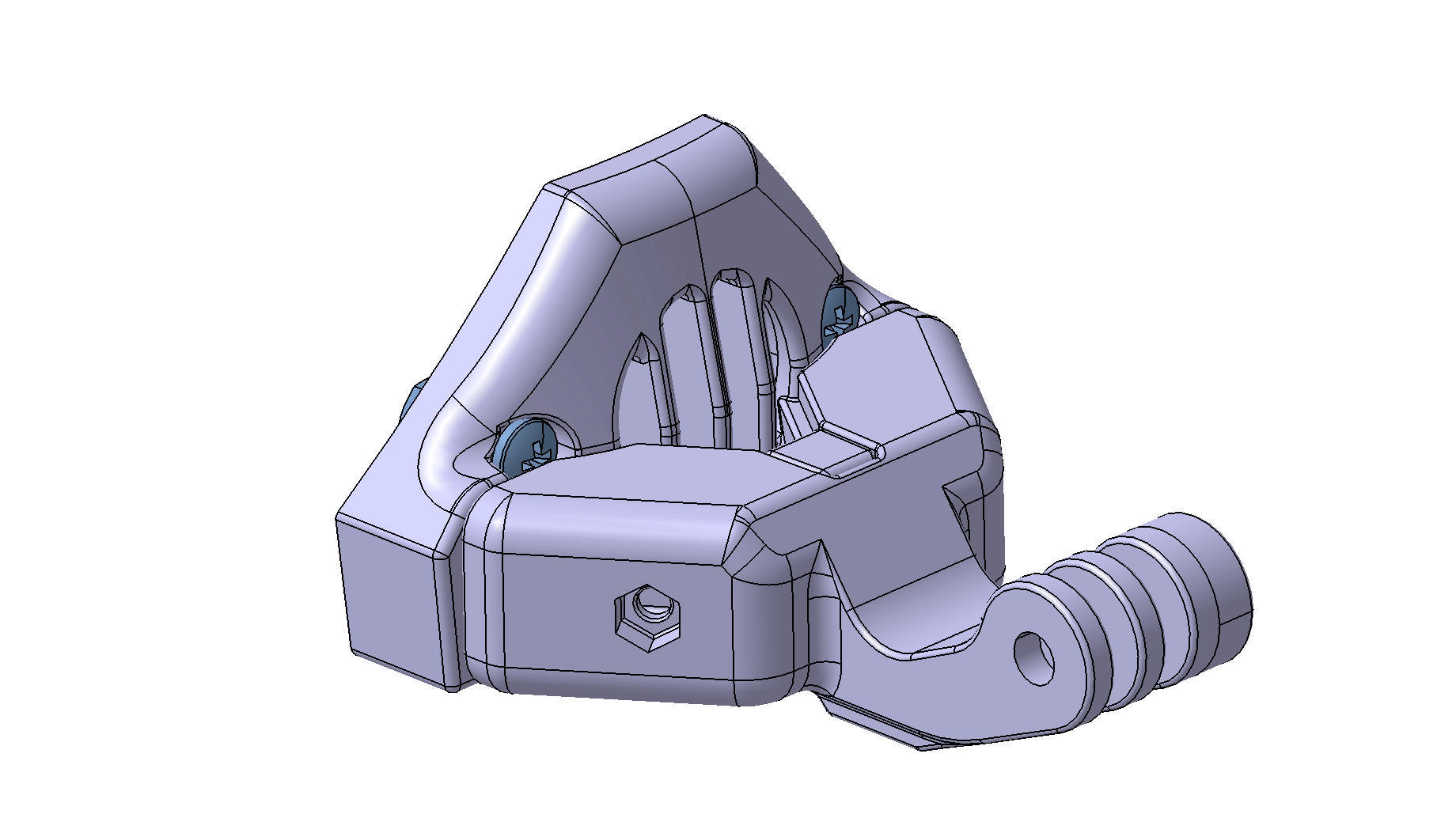

tabouare 25 #1 Posted July 8, 2021 (edited) I'm dropping this here in case people would like to fabricate them. Compatible with the Vmag system except for the magnets hole The mount use the existing holes in the helmet 3D printing process = HP PA 12 (MJF) www.hubs.comScrews: 1x Socket head cap screw M5-0.8 x 20mm 1x Nut M5x0.8 2x Button head #6-32 x 1/2in 2x Nut #6-32 4x Countersunk screw M3-0.5 x 8mm 4x Nut M3-0.5 Ebay N52 magnet 20x10x4mm with 4mm hole You need the poles to be inverted for them to work. I had to invert 1 side and drill a countersunk using a diamond bit Phantom.stl Vmag camera short.stl Edited July 8, 2021 by tabouare 1 Quote Share this post Link to post Share on other sites
